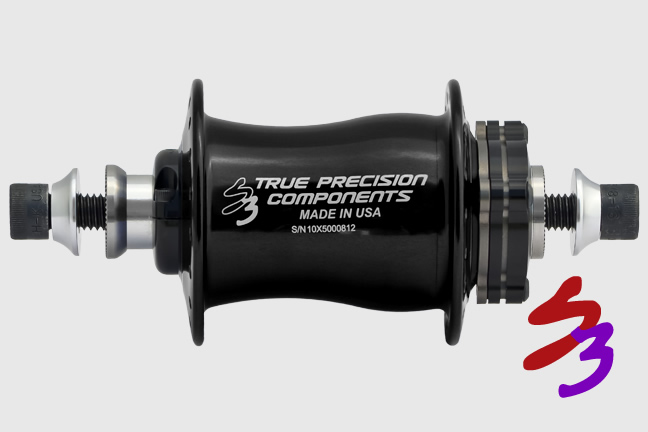

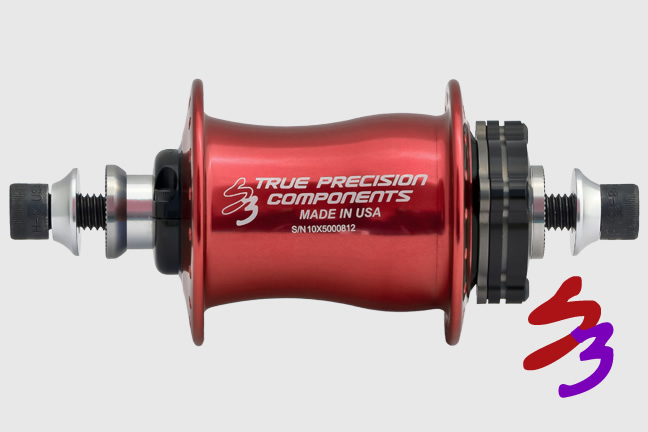

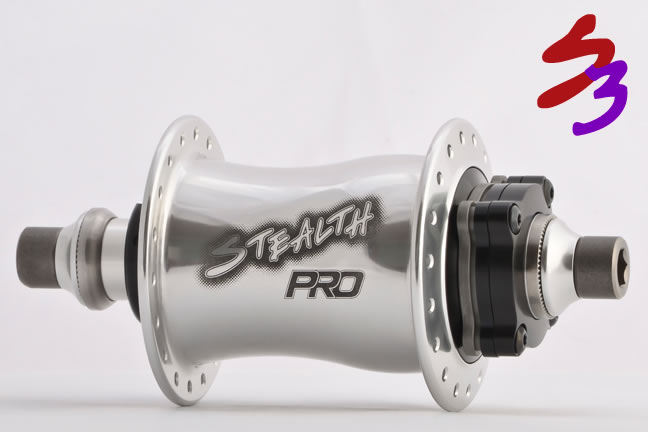

Stealth BMX Pro Rear Hub

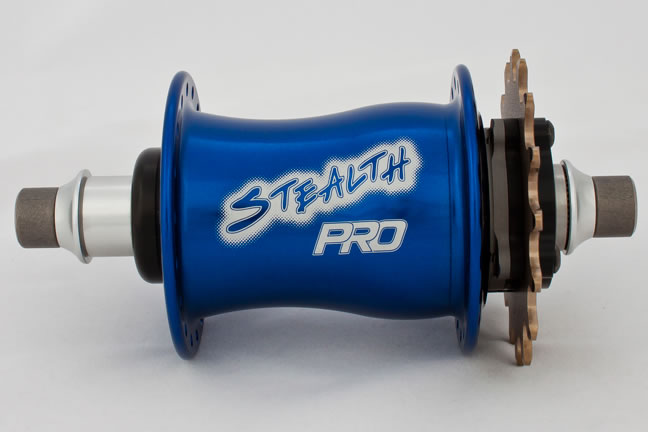

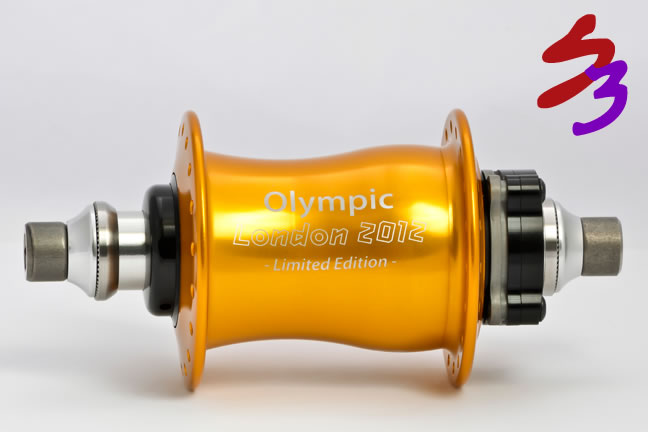

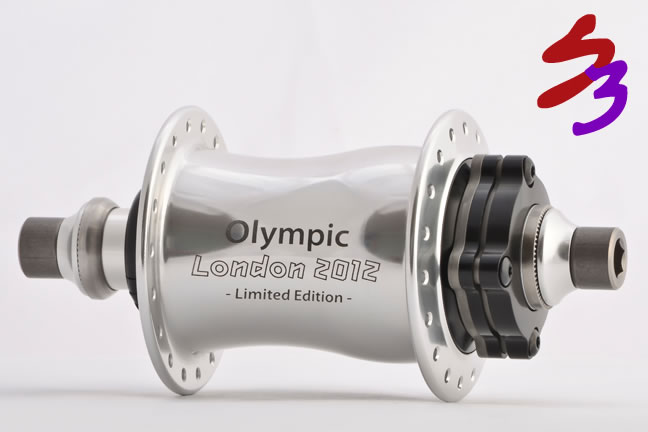

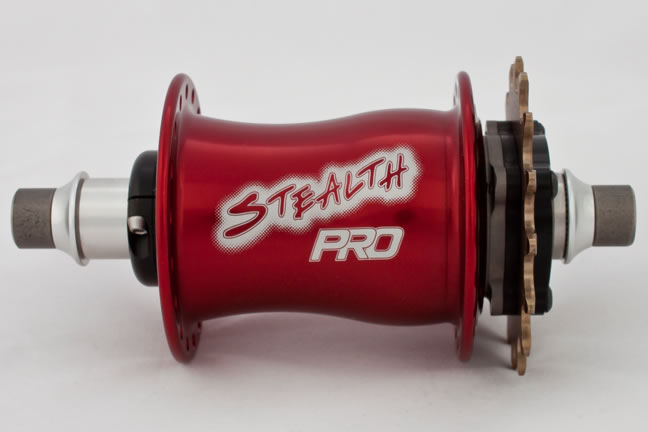

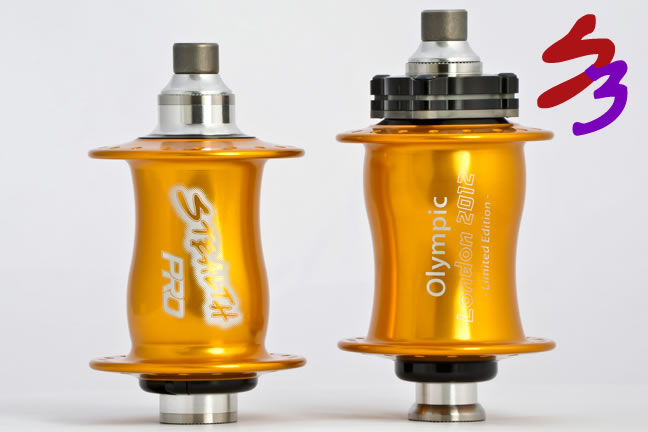

**Disclaimer: Some hubs may be shown with upgraded options.

Stealth BMX Pro Rear Hub

Take a look at the starting gate of the main event of any professional BMX race worldwide. More than likely the majority of pros on the gate are running the Stealth Pro hub. These professional riders recognize the advantages that the Stealth Pro hub offers: instant engagement, silent coasting and durability/longevity. Since we do not pay any professional riders to run our product, having the world’s top pros on our hub is a testimonial to its performance and quality. These same advantages that the professional riders enjoy are available to any rider just by putting a Stealth Pro hub on their bike.

Product Details
Colors Available:

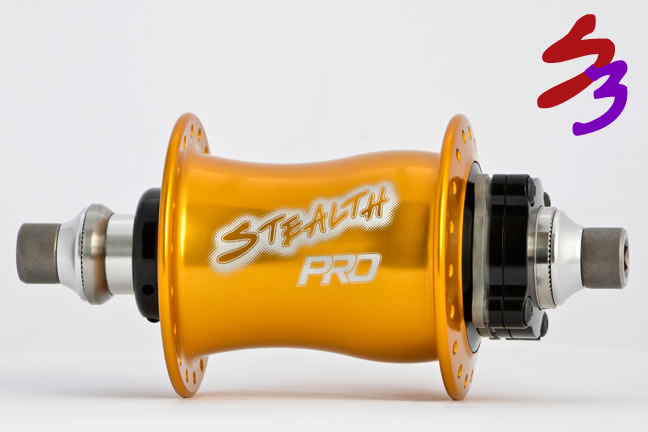

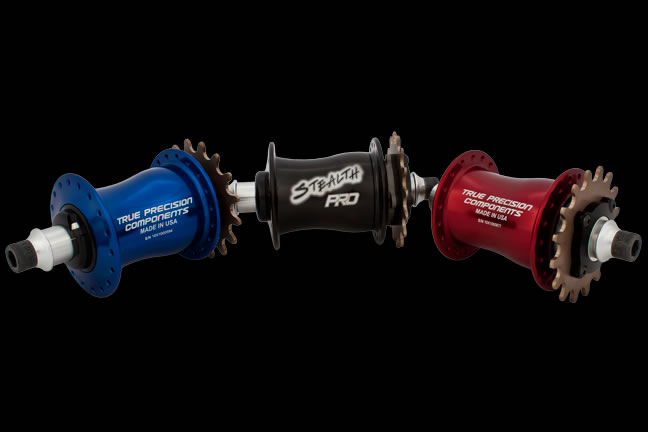

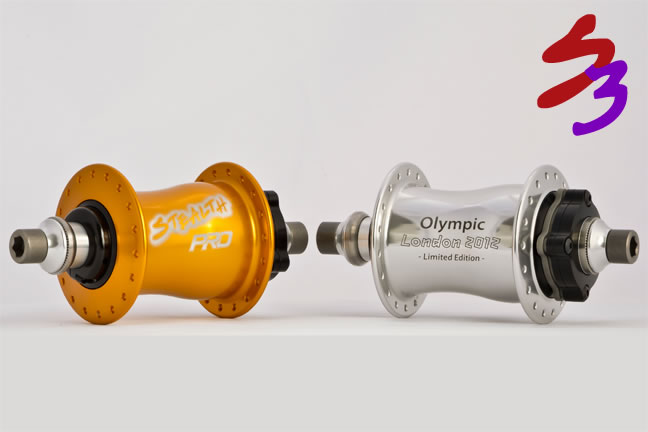

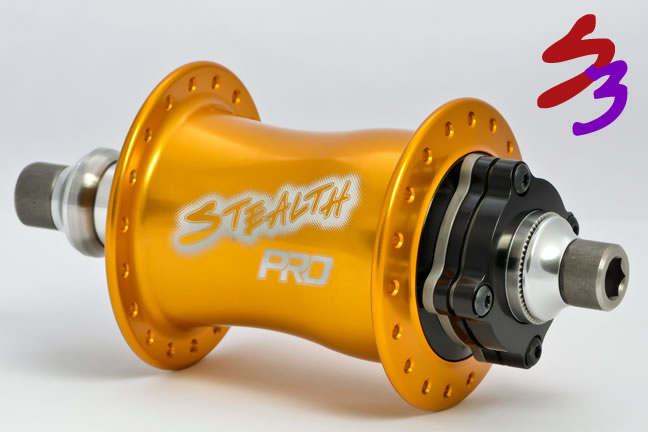

Red, Blue, Black and 3 NEW COLORS: Green, Gold and Silver
Engagement Type:
Instant and Silent
Spoke Holes:
32 and 36
Axles:

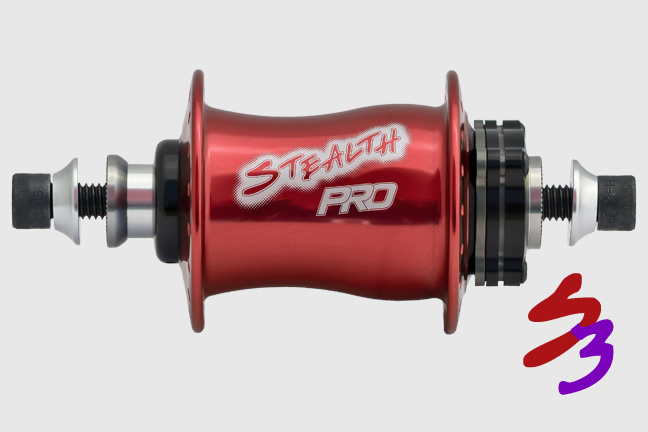

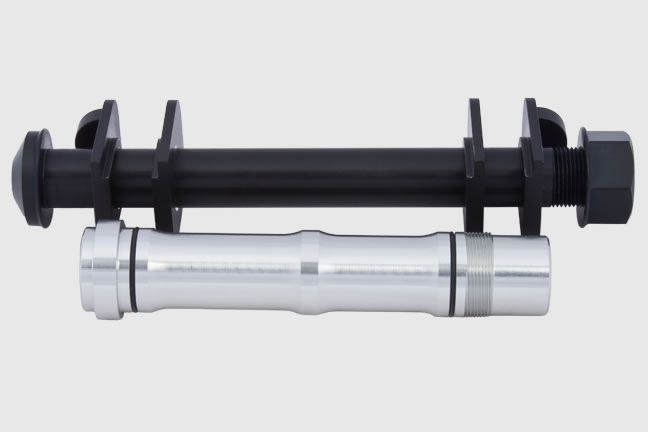

3/8 Bolt-On, 15mm Through and
NEW 20mm Through (See Stealth Pro Rear 20mm Hub product page)
Titanium Bolts:
Available with Bolt-On
Ceramic Bearings:
Available
Manufactured:
Made in the USA with the highest quality materials
Guarantee:
5 year warranty
Instant Engagement

The engagement system on Stealth hubs is the fastest on the market. This translates into zero lost motion when starting to pedal. Whether racing on a track/course or taking in the great outdoors, the rider experiences a notable advantage each time they accelerate.

Silent Coasting

This is where the Stealth hub got it’s name. Whether you are soundlessly approaching and passing an unaware rider or just quietly enjoying the sounds of nature, the Stealth hub is completely silent, pedaling or not.

Durability

Our products are designed and manufactured in-house emcompassing high quality control standards and materials. Simply put, our hubs are not only innovative but made to last.

Made In The USA

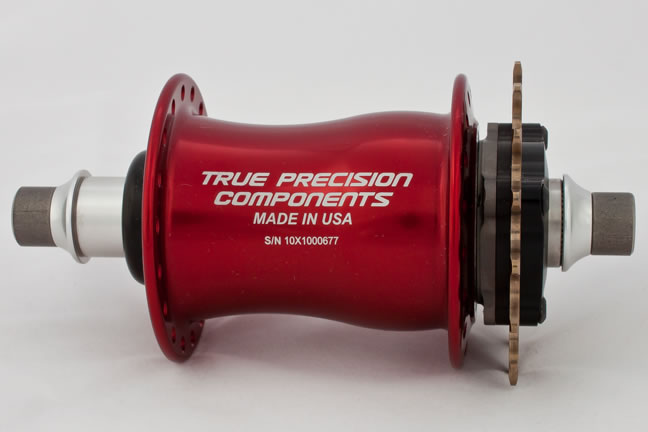

All stealth hubs are made by us in our own in-house machine shop right here in the USA.

5 Year Warranty

No questions asked. We want riders on our product to be happy and we will stand behind our product with our legendary customer service. Warranty Detail

Stealth BMX Pro Rear Hub

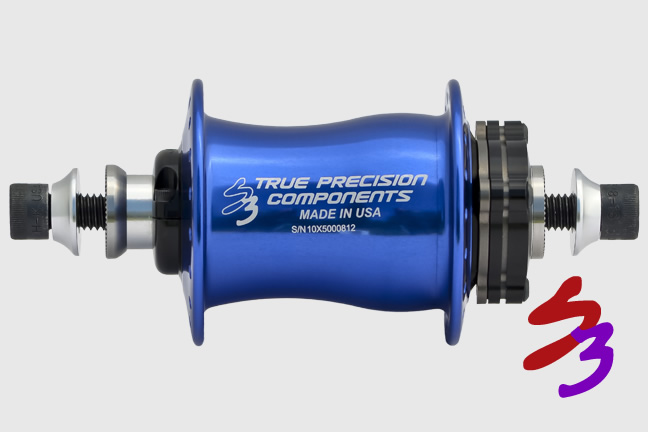

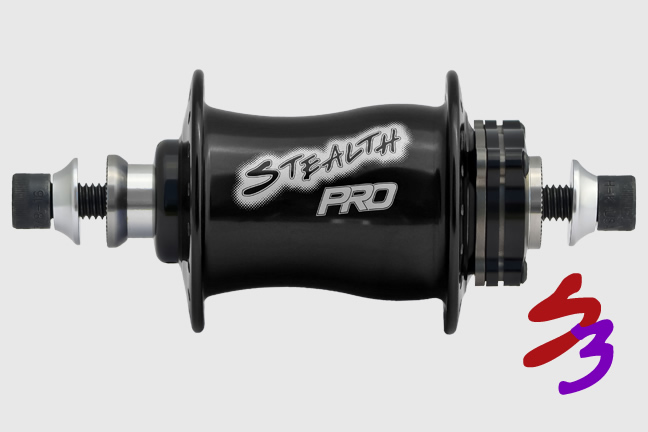

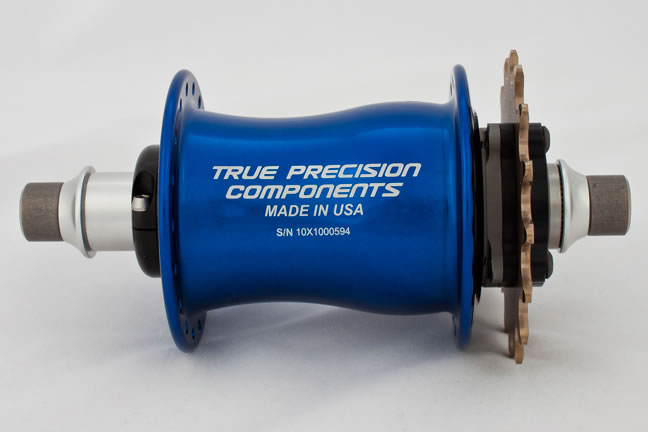

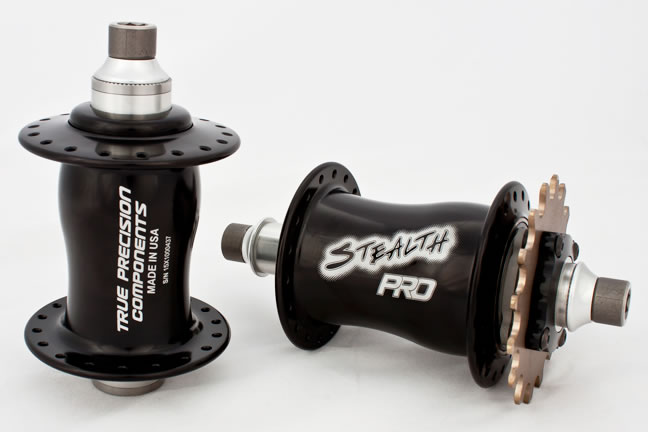

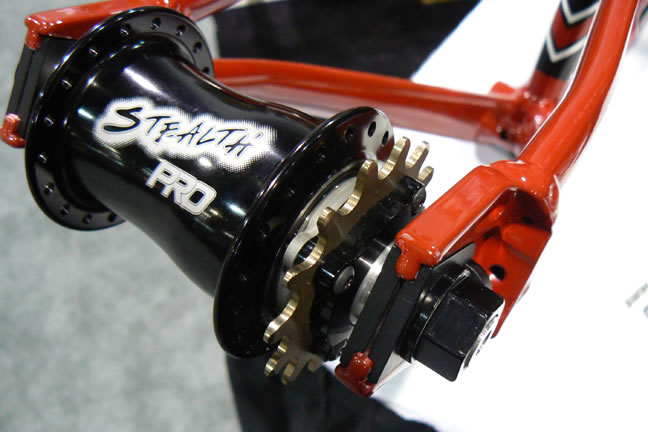

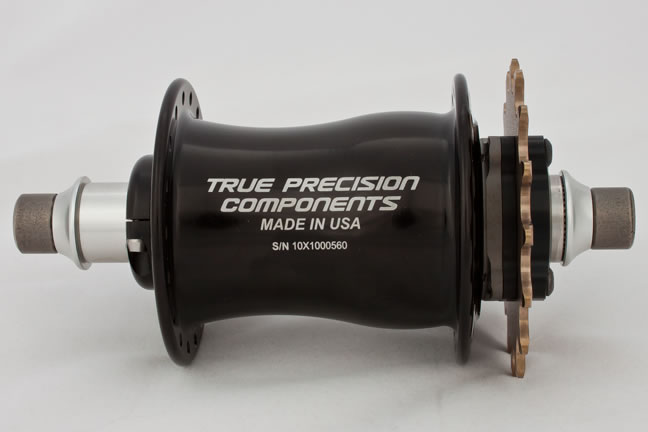

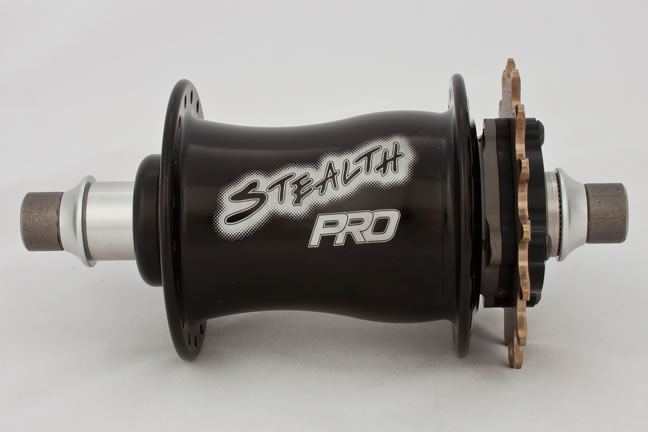

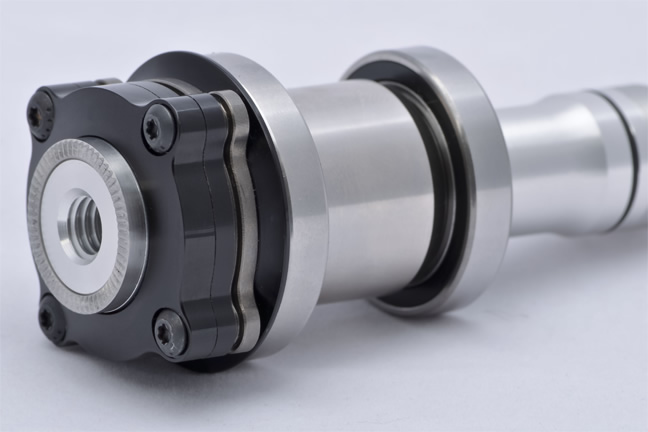

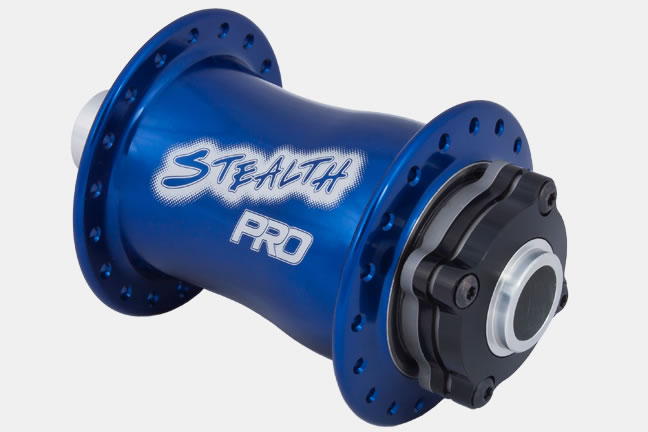

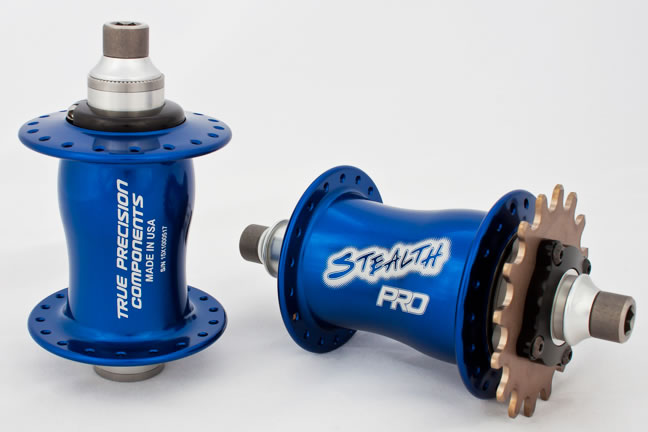

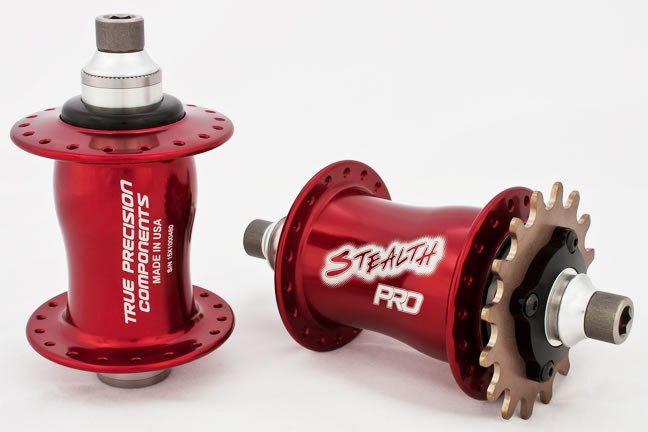

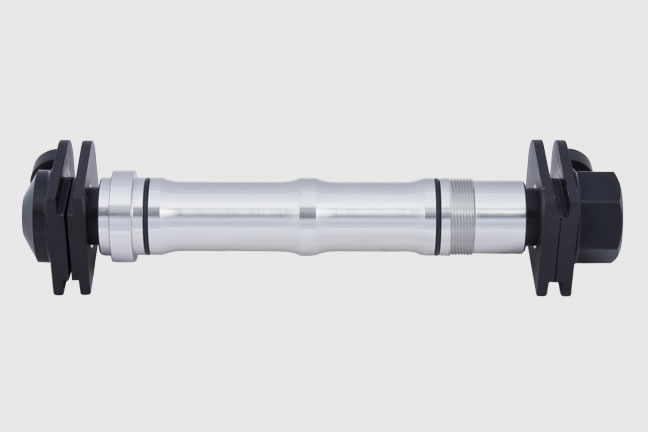

The Stealth BMX Pro Rear hub’s engagement mechanism is very durable and requires very little maintenance. Our quick change cog system uses our proprietary heat treated stainless steel cogs,available in 14-21 teeth. Wide canted flanges build up a very strong wheel and both the front and rear hubs use the same length spokes. Made in the USA with the highest quality materials, the PRO hub is covered by our 5 year warranty. 3/8" axle diameter is standard and 15mm through axle is an option for 15mm through axle frames. See our NEW Stealth Pro Rear 20mm Hub for 20mm rear through axle frames. Ceramic bearings and Titanium bolts are optional upgrades.

Stealth BMX Pro Rear Hub Dimensions/Measurements
Axle Width Axle  Type Flange Dia. DS Flange Dia. ND Center To Flange,DS Center To Flange,ND Weight* Disk Pattern Cassette Style
109mm 3/8 Bolt-On 57.5mm 57.5mm 32mm 32mm 482g N/A Stealth
109mm 15mm 57.5mm 57.5mm 32mm 32mm 463g N/A Stealth

* These weights do not include bolts, washers or cogs. The actual weight may vary depending on the variation of options/upgrades outfitted on the hub (i.e. ti or steel bolts, aluminum or steel cogs..etc).


**Disclaimer: Some hubs may be shown with upgraded options.
Race proven since 1999, the Stealth BMX Pro Rear hub is the benchmark of our product line. The Pro Rear hub’s instantaneous engagement and silent coasting are immediately noticeable. The engagement mechanism is very durable and requires very little maintenance. Our quick change cog system uses our proprietary heat treated stainless steel cogs, available in 14-21 teeth. Wide canted flanges build up a very strong wheel and both the front and rear hubs use the same length spokes. Made in the USA with the highest quality materials.
The Stealth BMX Pro Rear hub is covered by our 5 year warranty. 3/8" axle diameter is standard and 15mm through axle is an option for 15mm through axle frames. See our NEW Stealth Pro Rear 20mm Hub for 20mm rear through axle frames. Ceramic bearings and Titanium bolts are optional upgrades.

Purchase Form

Product Details
Colors Available:
Red, Blue, Black and 3 NEW COLORS: Green, Gold and Silver
Engagement Type:
Instant and Silent
Spoke Holes:
32 and 36
Axles:
3/8 Bolt-On, 15mm Through and
NEW 20mm Through (See Stealth Pro Rear 20mm Hub product page)
Titanium Bolts:
Available with Bolt-On
Ceramic Bearings:
Available
Manufactured:
Made in the USA with the highest quality materials
Guarantee:
5 year warranty
